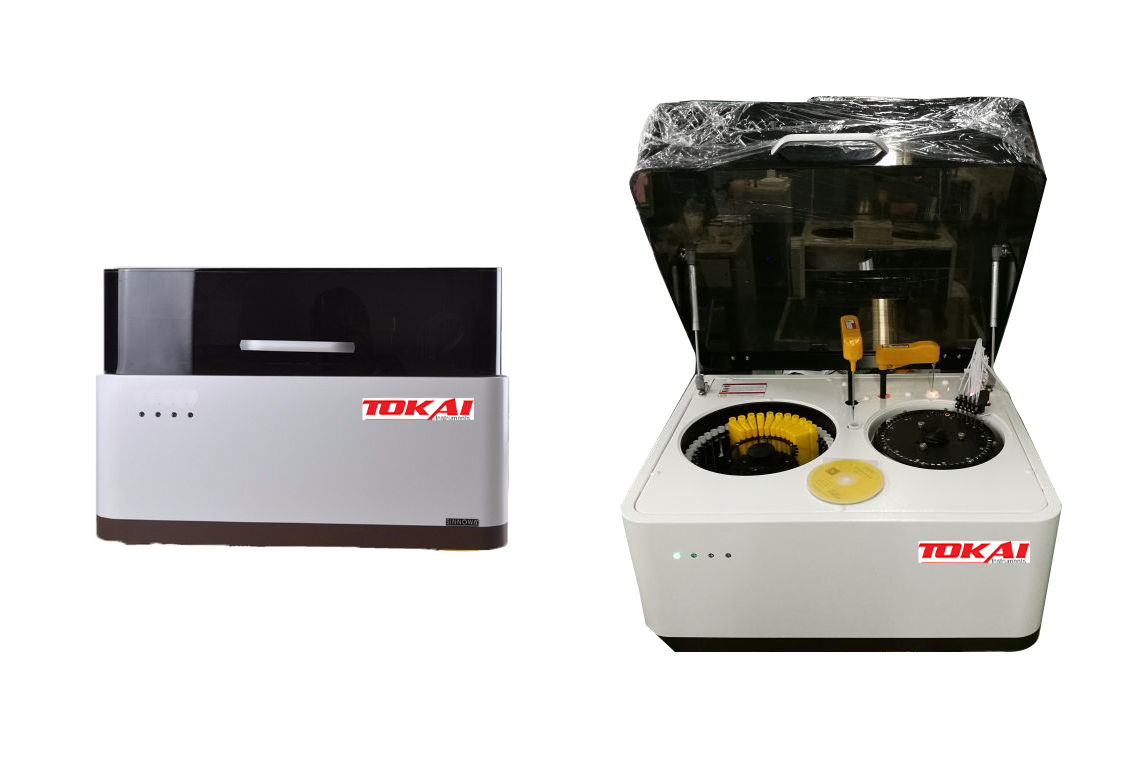

Fully Auto Biochemistry Analyzer (DR-161)
Technical Specifictions
| Model | DR-161 |
| Assay Model | Random access with direct reading system |
| Method | End point, Kinetic, Fixed time, Immunoturbidimetry, 1-2 reagent, Multistandard, reagent/serum blank, etc. |
| Assay Item | 36 assay ISE mould (Na+, K+, Cl- / Li+) available on request |
| Throughput | 220 tests/h(max) [1 reagent] 160 tests/h(max) [2 reagent] +100 tests/h [with ISE] |
| Sample Position | 50 Including Standard, Control & start; either serum cup or primary tube available |
| Sample Volume | 1~100µl, 0.1µl/step |
| Reagent Position | 36 |
| Reagent Volume | R1:1~400µl, 1µl/step, R2:1~400µl, 1µl/step |
| Reagent / Sample Probe | With liquid level sensor, collision sensor, teflon coating and automatic washing station |
| Reaction Time | 0~999 seconds |
| Cuvette | High quality UV-transmitted plastic cuvette. Quartz glass cuvettes available on request |
| Cuvette Washing | 5 channels |
| Probe & Mixer Washing | Independent washing station for each sample / regent probe and mixer. |
| Alarm | Automatic alarm for malfuction (eg: collision, reagent / sample insufficiency, full waste container, etc.) |
| Callibaration | Linear, non-linear, multi-standard, K factor |
| Sample Dilusion / Retest | Sample can be diluted & retested if results are out of range or sample is insufficient. Also with calibrator auto diluting function |
| Wavwlength | 340~810nm |
| Light Source | Halogen lamp |
| Absorbance Resolution | 0.0001A |
| Absorbance Accuracy | ±0.0003A(0~2.5A) |
| Repeatability (CV %) | ≤2% |
| Quality Control | Levy jennings quality control program at 3 levels |
| Bar Code | Optional |
| Printer | Multiple report formats available |
| Test Control Function | New card control system available on request |
| Language | English, French, Spanish, German, Russion, etc. |
| System | Windows XP or Vista; Windows 7 |
| Power Supply | 220V / 50Hz or 110V / 60Hz (optional) |
| Dimension | 65 X 53 X 52 cm. |
| Weight | 45kg |
