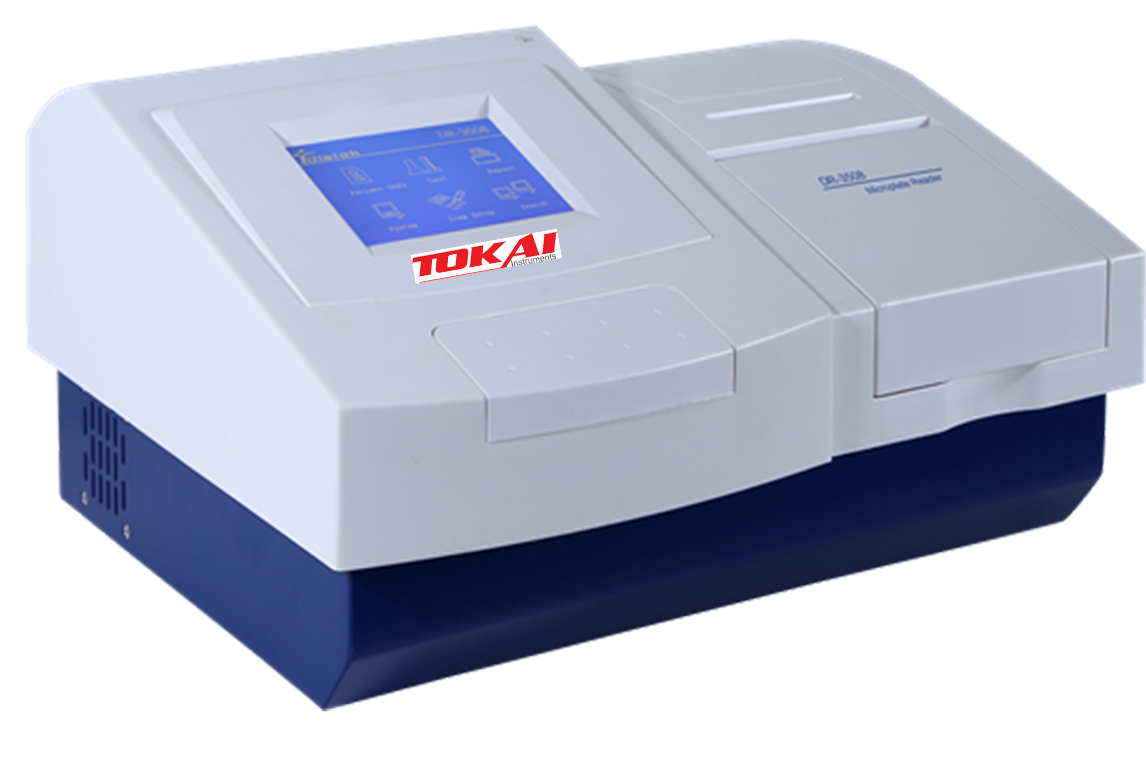

Microplate Reader (DR-3508)
Features
- Touch screen, 5.7" high resolution LCD display.
- 8 channel optical fiber scanning.
- Single or dual wavelength measurements.
- performing 12 different tests just in one plate.
- Extensive report with patient information.
- Auto Lamp adjustment and calibration.
- Stable memory stores up to 200,000 test data, 500 test projects.
- User-friendly and easy to programme.
Technical Specification
- Microplate types range
- Photodetector
- Light Source
- Wavelength range
- Standard filters
- Reading range
- Resolution
- Accurancy
- Resproducibility
- Stability
- Reading Speed
- Shaking
- Printer
- Interface Connections
- Power supply
- Dimension
- Net weight
- : 96 / 48 well plate
- : Silicon photodiode
- : 8v / 50w Controlled tungsten halogen lamp
- : 400nm~850nm
- : 405, 450, 492, 630nm & 4 optional
- : 0.000~4.000A
- : 0.001A
- : ±0.008A
- :
<=0.2%
- : ±0.003A
- : Single Wavelength
<=3s; Double Wavelength<=6s
- : Linear shaking, 3 speeds
- : Built-in thermal printer and optional external printer
- : 2 X USB, 1 X RS-232, PS2 Mouse & Keyboard
- : 100-240V, 50-60Hz
- : 460(L) X 350(W) X 197(H) mm.
- : 8kg
